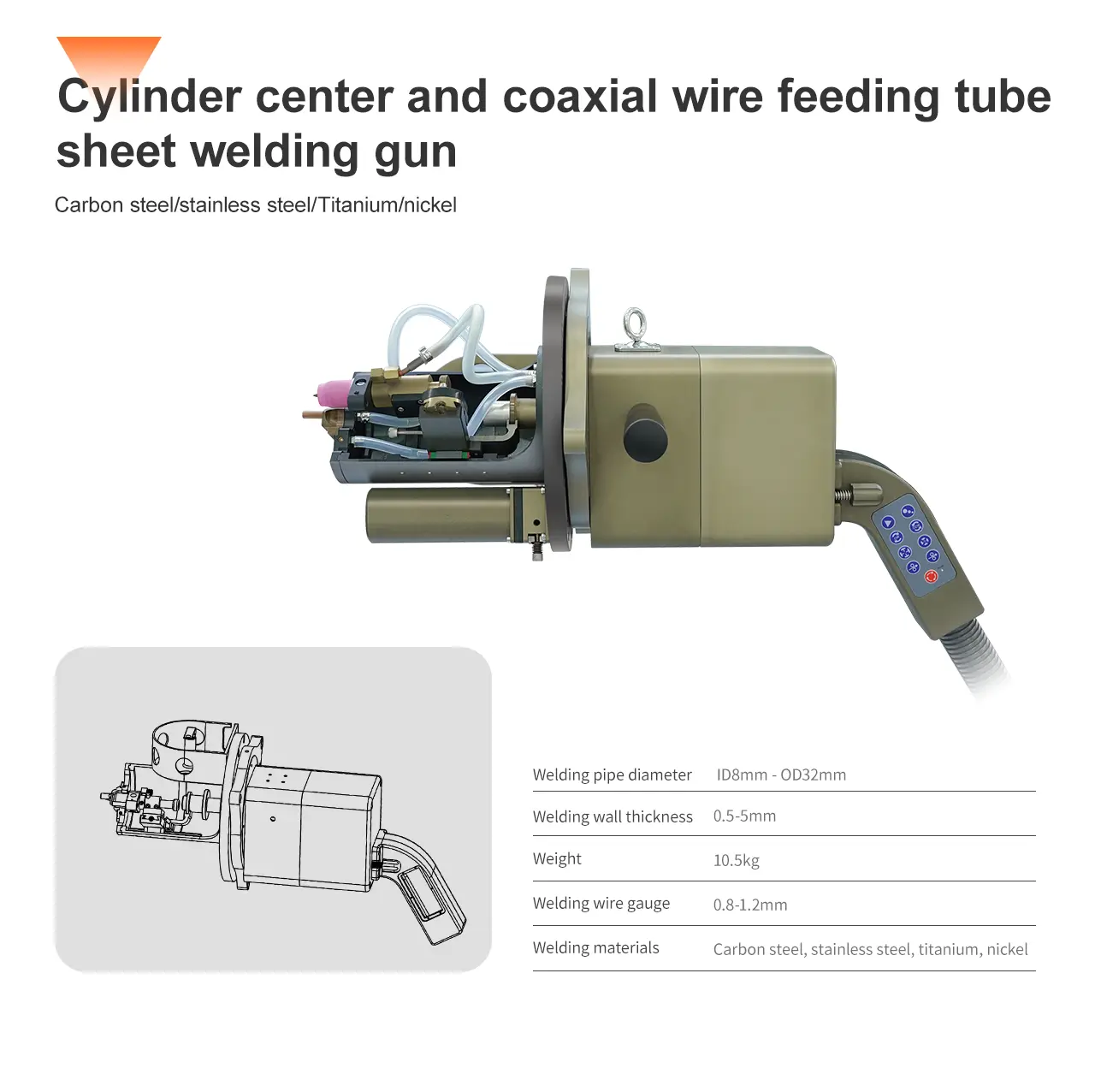

TBS-65 is a special welding head designed and developed for all-position automatic welding of various tube sheets. It adopts a new rack-type copper sleeve design. After adjusting the position of the tungsten needle, the copper sleeve is directly inserted into the pipe, simplifying the welder's operation difficulty.

• Welding material: Carbon steel, stainless steel, titanium, nickel, etc.
• Welding wall thickness: ≤5mm
• Welding pipe diameter:8mm-32mm
• Welding form: Butt joint

Adopting the new rack-type copper sleeve design, you only need to adjust the position of the tungsten needle, and the copper sleeve can be directly inserted into the pipe, simplifying the welder's operation difficulty.Suitable for pipe extension, pipe leveling, self-melting, wire filling and other welding.The overall structure is compact, with built-in water and electricity transmission, and 360 degrees without duct winding.Built-in wire feeder, lkG wire tray can be installed, water circulation cooling, high temporary load rate of equipment: tight assembly process ensures stable operation of the equipment.Optimized ergonomic design, easy to use, safe and reliable
